IPB428AIX

4MP LIGHTHUNTER, TDN, WDR, IR BULLET

Key Features

Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
LightHunter Technology for ultra-high quality color video images in low light applications with up 4MP, 2688 x 1520 Resolution
Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 131 Feet
2.8 fixed, wide-angle lens
TRUE Day/Night and WDR functionality for all Lighting Conditions
Built-in microphone, Corridor View, Backlight Compensation, 3D DNR (Digital Noise Reduction)
Dual Video Streams, ONVIF Profile S Compliant
Intelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
PoE & 12VDC Power Options, & Built-in Micro-SD Card Slot enables local storage up to 256GB
IP67 Weather Resistant Housing, 3-Way Axis and Optional Mounts Available
Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

SKU: IPB428AIX Categories: IP Cameras, Bullet

Camera
Sensor	1/3", progressive scan , 4 megapixel, CMOS
Lens	2.8 mm@ F1.6
Angle of View (H x V)	101.1° x 55.3°
Shutter	Auto/Manual, 1/6 ~ 1/100000 s
Minimum Illumination	Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
Smart IR LED Range / Wavelength	Up to 40m (131ft) IR range / 850nm
WDR	120dB
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream	Main: 4MP (2688 x 1520) @ 30fps Sub: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 x 576) @ 30fps
HLC, BLC, 9:16 Corridor, Defog, Flip	Supported
OSD, Privacy Mask, Motion Detection & ROI	Up to 8 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, G, T), API
Network	RJ45, 10M/100M Base-TX Ethernet
Intelligent Perimeter Protection	Line Crossing, Intrusion & Leave Area detection w/ Smart Intrusion Prevention Technology for False Alarm Prevention
Local & Network Storage	Micro-SD, up to 256GB; ANR
General
Power	12VDC, PoE (IEEE802.3 af); Power consumption: Max 4W
Audio & Compression	Built-in microphone; G.711 Compression
Dimensions (L x W x H) & Weight	155.9 × 63.1 × 62.7mm (6.1 × 2.5 × 2.5”); 0.42kg (0.93lb)
Operating Temperature & Humidity	-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing)
Conformity Certifications	IP67, CE, FCC

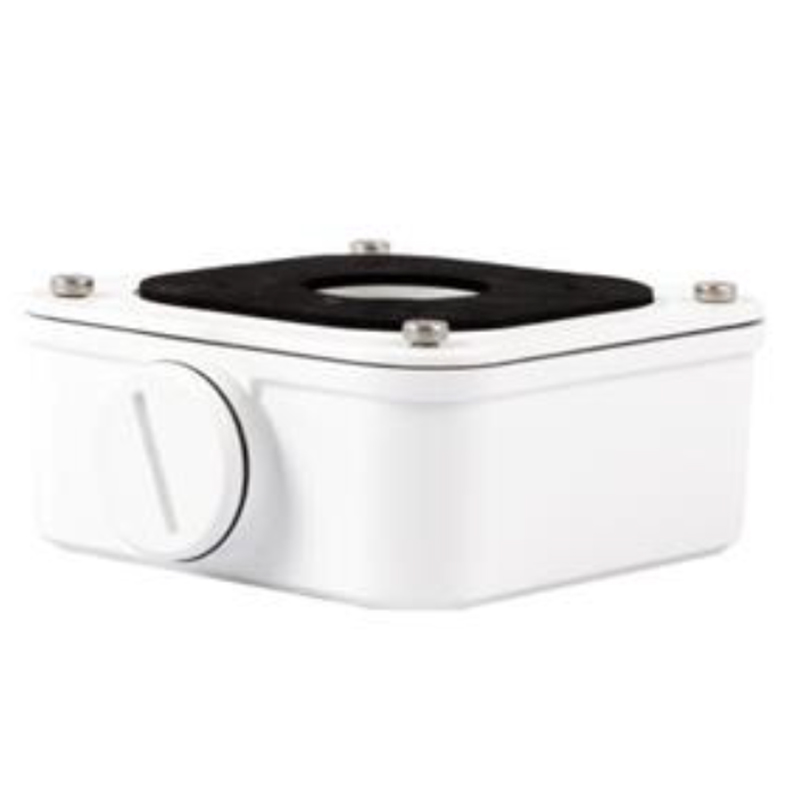

TR-JB05-A-IN
