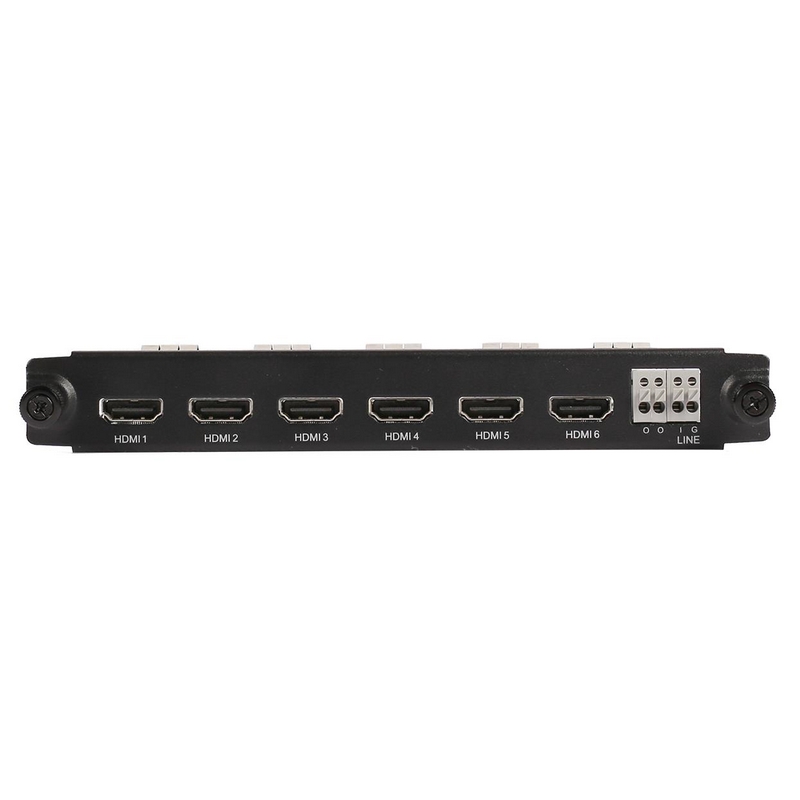

6-ch Decoder Card
FB-HDMI6-C-NB

6-ch HDMI Output Decoder Card

Want to buy this product?
Find A Dealer

Key Features

  • Support 4 or 6 channels of additional HDMI outputs
  • For use in video walls
  • Supports NR6416 & NR12816 network recorders only
  • HDMI resolution up to 4K, 3840 x 2160
  • H.265 & H.264 standards support

SKU: FB-HDMI6-C-NB Categories: ,
Video Test Monitor
HDMI Port Supports 4 or 6 ch
HDMI Output 4-ch Ports HDMI1 & HDMI3:
1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Ports HDMI2 & HDMI4:
4K (3840 x 2160) /60Hz, 4K (3840 x 2160) /30Hz, 1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
HDMI Output 6-ch Ports HDMI1 & HDMI2 & HDMI4:
1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Ports HDMI3 & HDMI5 & HDMI6:
4K (3840 x 2160) /60Hz, 4K (3840 x 2160) /30Hz, 1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Camera Capability (fps): 4-ch 8 x 4K @ 30, 16 x 4MP @ 30, 32 x 1080P @ 30, 64 x 720P
Camera Capability (fps): 6-ch 12 x 4K @ 30, 24 x 4MP @ 30, 48 x 1080P @ 30,
96 x 720P
Multi-window 1/3/4/5/6/7/8/9/16
Working Humidity 10% ~ 90%
Weight 1 Kg (2.2 lb)
