IPB5180X
IPB5180X

5MP, PANORAMIC 180° LENS, WDR, AI, IR BULLET

Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 5MP, 2880 x 1620 Resolution)
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 66 Feet
  • Panoramic 1.68mm, 180° lens; ONVIF Profile S Compliant
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Built-in Microphone, Triple Video Streams, Defog, Dewarping, Backlight Compensation and 3D DNR
  • Intelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
  • PoE & 12VDC Power Options and Optional Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • 3-way Axis, IP67 Weather Resistant Housing
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

SKU: IPB5180X Categories: ,
Camera
Sensor 1/2.7", progressive scan , 5 megapixel, CMOS
Lens Panoramic 1.68mm @ F2.0
Angle of View (H x V) 180° x 180°
Shutter Auto/Manual, 1/6 ~ 1/100000 s
Minimum Illumination Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
Smart IR LED Control; Range Auto / Manual On / Off; Up to 20m (66ft)
WDR 120dB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main: 5MP (2880 x 1620) @ 30fps
Sub: 1080P (1920 x 1080) @ 30fps
Third Stream: D1 (720 x 576) @ 30fps
HLC, BLC, Defog, Flip, Dewarping Supported
OSD, Privacy Mask, Motion
Detection & ROI		 Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,
RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, G, T), API
Network RJ45, 10M/100M Base-TX Ethernet
Intelligent Perimeter Prevention Line Crossing, Intrusion & Leave Area detection
w/ Smart Intrusion Prevention Technology for
False Alarm Prevention
Local & Network Storage Micro-SD, up to 256GB; ANR
General
Power 12VDC +/- 25%; PoE (IEEE802.3 af);
Power consumption: Max 5.5W
Dimensions (L x W x H) & Weight 198 × 71 × 71mm (7.8 × 2.8 × 2.8”);
.42kg (0.93lb)
Audio & Compression Built-in Mic; G.711A & G.711U Compression
Alarm I/O 1 / 1
Operating Temperature &
Humidity		 -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, CE, FCC

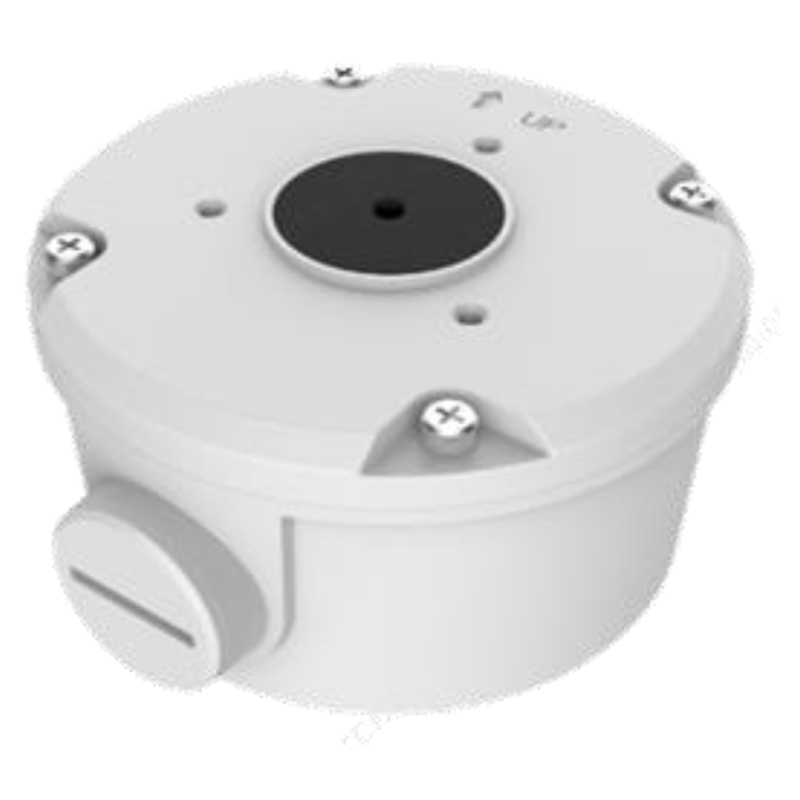

Junction Box 104.4 x 54.5mm (4.11 x 2.15”) title= TR-JB05-B-IN

Junction Box

Waterproof Plastic Grommet TR-A01-IN

Waterproof Plastic Grommet

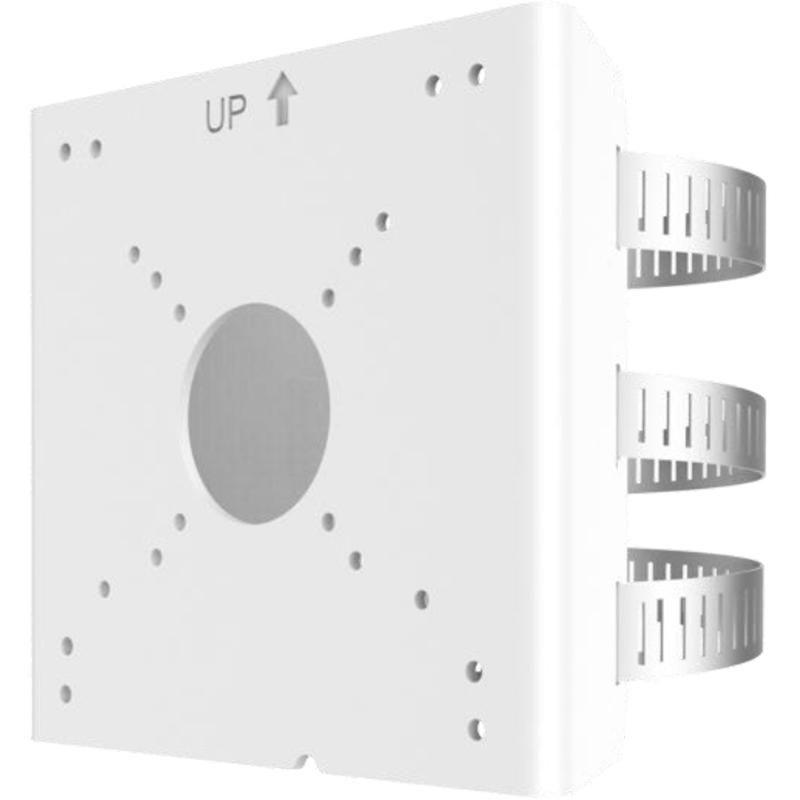

TR-UP06-C-IN

Pole Mount
