IPCSD54X

5MP, IR, 4x, Active Deterrence Mini-PTZ Dome

Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 5MP 2880 x 1620 Resolution, with Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
  • LightHunter Technology for ultra-high image quality in low light applications and Smart IR LED Lights for 0 Lux Night Time Operation up to 164 Feet
  • 2.8 ~ 12mm, 4x Optical motorized zoom and automatic focus lens
  • TRUE Day/Night and Wide Dynamic Range Functionality for all Lighting Conditions
  • Built-In Mic & Speaker, Backlight Compensation and 3D DNR (Digital Noise Reduction)
  • Pan / Tilt Speed up to 50°/sec with up to 256 Preset Positions
  • Triple Video Streams; ONVIF Profile S Compliant
  • Intelligent perimeter protection with Active Deterrence with Strobe Light and Audio Alarm
  • 12VDC / PoE Power Options and Built-in Micro-SD Card Slot enables up to 256GB storage
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

SKU: IPCSD54X Categories: ,
Camera
Sensor 1/2.7", progressive scan , 5 megapixel CMOS
Lens 2.8 ~ 12mm, automatic focusing and motorized zoom lens
Angle of View (H x V) 30.6° ~ 104.1° x 17.4° ~ 54.9°(wide ~ tele)
Shutter Auto/Manual, 1 ~ 1/100000 s
Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR LED Range / Wavelength Up to 50m (164ft) IR range / 850nm
WDR 120dB
Video Compression Ultra 265, H.265, H.264, MJPEG
Maximum Frame Rate/ Stream Main Stream: 5MP (2880 × 1620) @ 30fps
Sub Stream: 720P (1280 x 720) @ 30fps
Third Stream: D1 (720 × 576) @ 30fps
HLC, BLC, Flip Supported
OSD, Privacy Mask, Motion Detection & RO Up to 8 areas
Pan and Tilt Speed; Presets 0°~345° Pan, 50°/s max speed; -10° ~ 110° Tilt,
40°/s max speed; 256 presets
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE,
RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
Compatible Integration ONVIF Profile S, API
Network RJ45, 10M/100M Base-TX Etherne
Intelligent Perimeter Protection Cross Line, Intrusion, Enter Area, Leave Area
detection; Motion detection
Micro-SD, up to 256GB; Automatic Network
Replenishment (ANR)		 Micro-SD, up to 256GB; Automatic Network
Replenishment (ANR)
General
Power 12VDC +/- 25%, PoE (IEEE802.3 af); Max 18W
Dimensions (Ø x H) & Weight Φ133 x 269.4mm (Φ5.2 x 10.6”); 1.13kg (2.49lb)
Audio I/O & Compression Built-in Mic & Speaker; G.711U and G.711A
Operating Temperature &
Humidity		 -20°C ~ +60°C (-4°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP66, CE, FCC
Junction Box TR-JB07-D-IN

Junction Box

Waterproof Plastic Grommet TR-A01-IN

Waterproof Plastic Grommet

TR-UP06-B-IN

Pole Mount

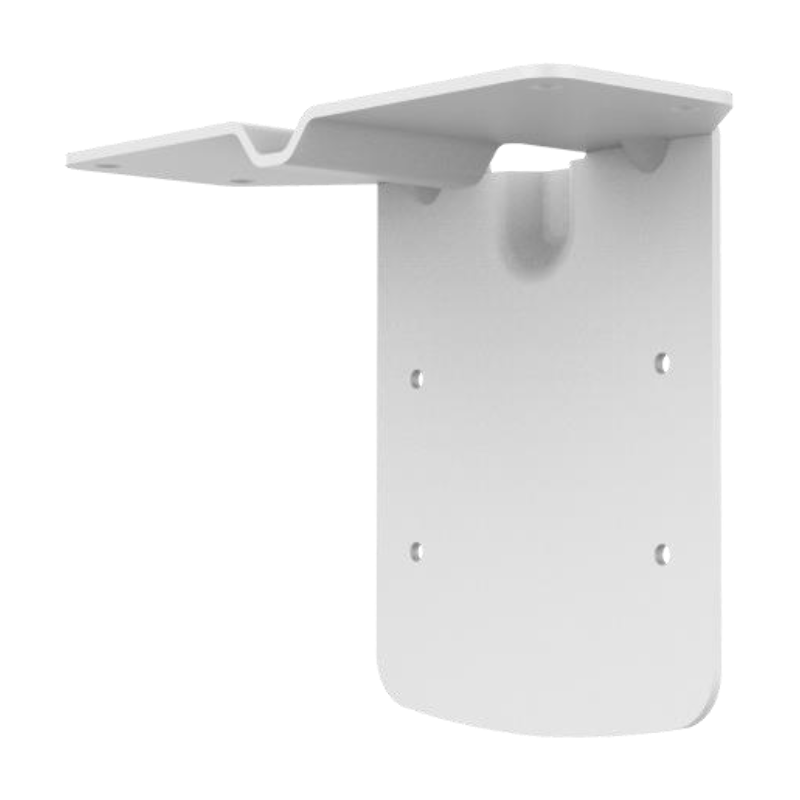

TR-CM06-D

Ceiling Mount Pendant
