IPB4K212MX

4K, True Day/Night, WDR, IR Bullet

Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 4K (8MP), 3840 x 2160 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet
  • 2.8 ~ 12mm motorized varifocal, automatic focus lens
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Two-way Audio, Corridor View, Backlight Compensation and 3D DNR (Digital Noise Reduction)
  • Triple Video Streams; ONVIF Profile S Compliant
  • Powerful Intelligent Video Analytics
  • PoE & 12VDC Power Options
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • IP67 Weather Resistant Housing
  • Optional Mounts Available
  • Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

SKU: IPB4K212MX Categories: ,
Camera
Sensor 1/2.8", progressive scan , 8 megapixel, CMOS
Lens 2.8 ~ 12 mm, varifocal automatic focusing and motorized zoom lens
Angle of View (H x V) 107.4° ~ 29.2° x 54.2° ~ 16.3° (Wide ~ Tele)
Shutter Auto/Manual, 1/6 ~ 1/100000 s
Minimum Illumination Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR LED Range / Wavelength Up to 50m (164ft) IR range / 850nm
WDR 120dB
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Maximum Frame Rate / Stream Main: 8MP (3840 x 2160) @ 20fps; 5MP (3072 x
1728) @30fps; 4MP (2560 x 1440) @ 30fps; 2MP
(1920 x 1080) @ 30fps
Sub: 2MP (1920 x 1080) @ 30fps
Third Stream: D1 (720 × 576) @ 30fps
HLC, BLC, 9:16 Corridor, Defog Supported
OSD, Privacy, Motion & ROI Up to 8 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP,
RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP
HTTPS, SMTP, SSL, SNMP
Network RJ45, 10M/100M Base-TX Ethernet
Smart Intrusion Video Analytics Cross line, intrusion, enter area, leave area detection
Compatible Integration ONVIF (Profile S, G, T); API
Local & Network Storage Micro-SD, up to 256GB; ANR
General
Power 12VDC +/- 25%, PoE (IEEE802.3 af); Max 10W
Dimensions (L x W x H) & Weight 245 × 86 × 72mm (9.6 × 3.4 × 2.8”);
0.92kg (2.03lb)
Audio I/O & Compression 1 / 1; G711 compression
Alarm I/O 1 / 1
Operating Temperature & Humidity -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~
95% RH (non-condensing)
Conformity Certifications IP67, IK10, CE, FCC
TR-UP06-B-IN

Pole Mount

Pole Mount 127 x 136 x 62.5mm (5 x 5.35 x 2.46”) TR-UP06-C-IN

Pole Mount

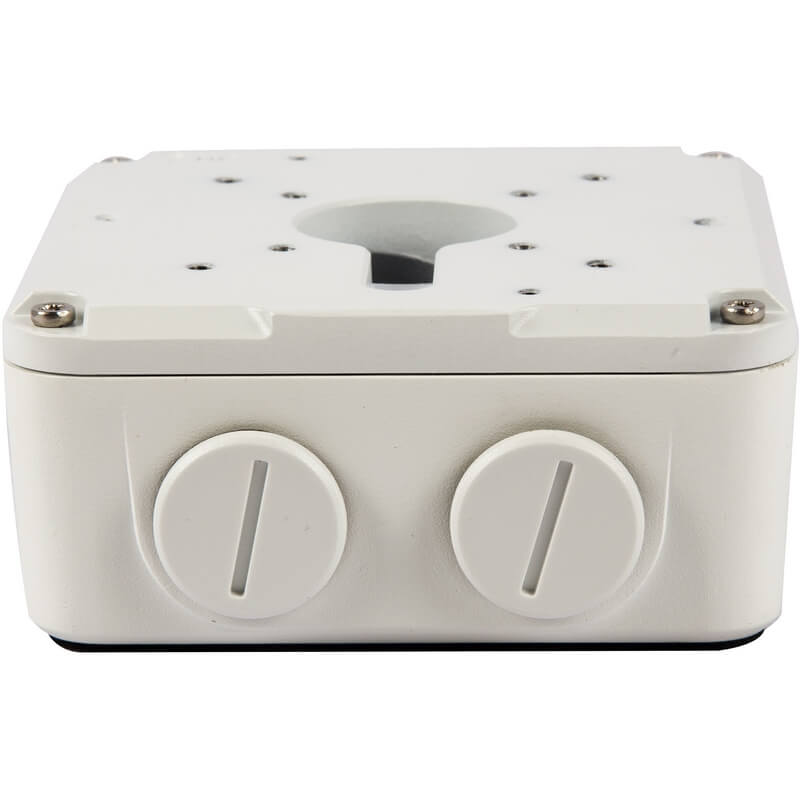

Junction Box 125 x 125 x 55mm (4.9 x 4.9 x 2.2”)_01 TR-JB07-D-IN

Junction Box

Waterproof Grommet TR-A01-IN

Waterproof Grommet

Corner Mount TR-UC08-C

Corner Mount
