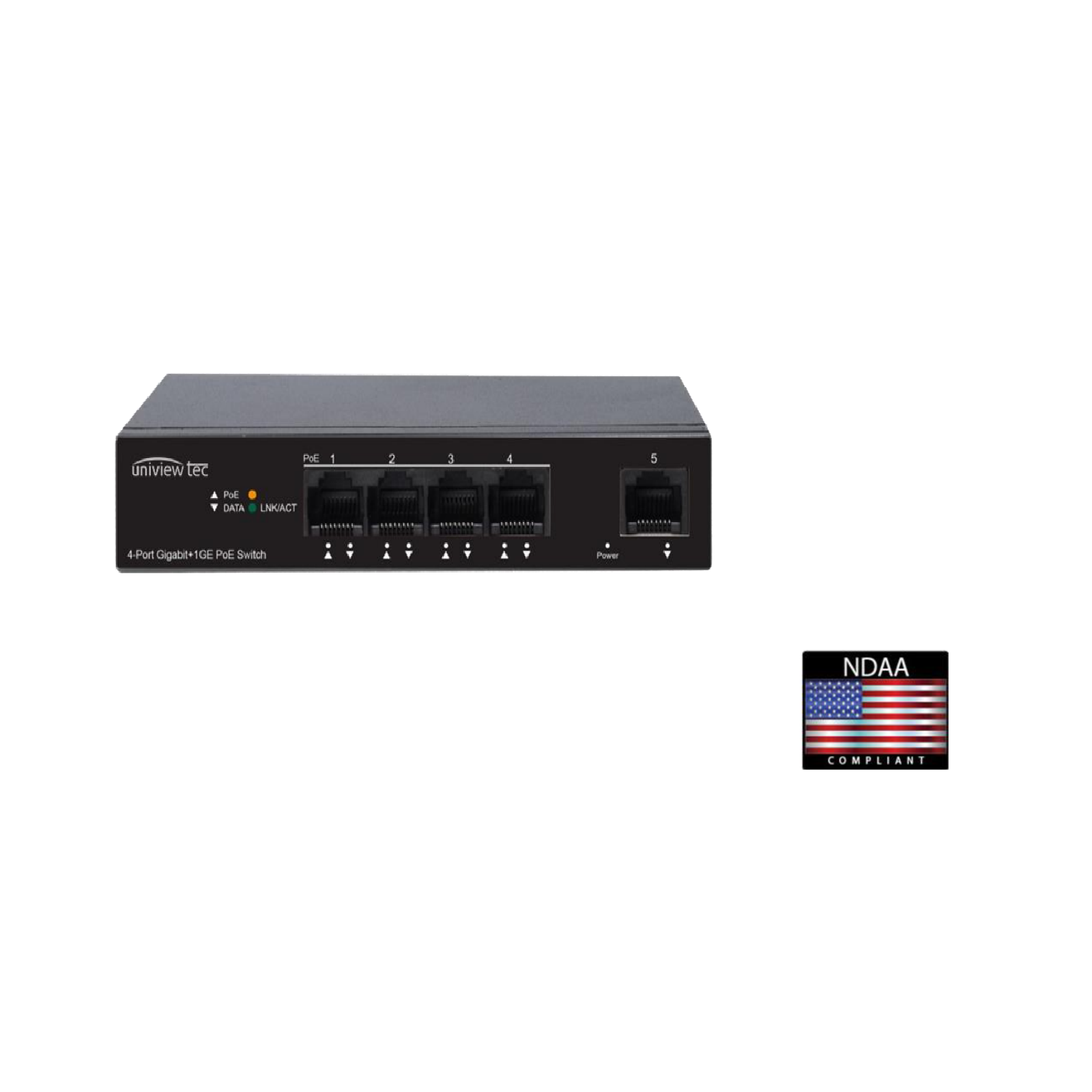

4-Port PoE Network Switch
NSW04GPX

4-Port PoE Network Switch

Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • 4 x 1000Mbps RJ45 PoE ports with 60W Total Capacity
  • 1 x 1000Mbps RJ45 Network ports
  • Support PoE power up to 30W for single port
  • Supports port power supply prioritization, guarantees the continuous power supply of key nodes
  • Auto detect power device
  • Supports IEEE802.3x full duplex flow control and backpressure half duplex flow control
  • Line-speed forwarding, intelligent identification

SKU: NSW04GPX Categories: ,
PoE Network Switch
Ports 4 × 1000Mbps PoE ports (RJ45)
1 × 1000Mbps ports (RJ45)
Standards IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching Capacity 10Gbps
Forwarding Performance 7.44Mpps
Packet Buffer 1Mbit
MAC 2K
Dimensions (W x D x H) 140 x 76.7 x 27.7mm
(5.5 × 3 × 1.1")
Weight <1kg (2.2lb)
Maximum Power 130W
PoE 802.3at/af
Maximum PoE Power Max capacity: 60W ; Max capacity for single port: 30W
Operating Temperature 0° ~ 40°C (32° ~ 104°F)
Storage Temperature -40° ~ 70°C (104° ~ 158°F)
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing
Indicator PWR(Green), LNK/ACT(Green), PoE(Orange)
