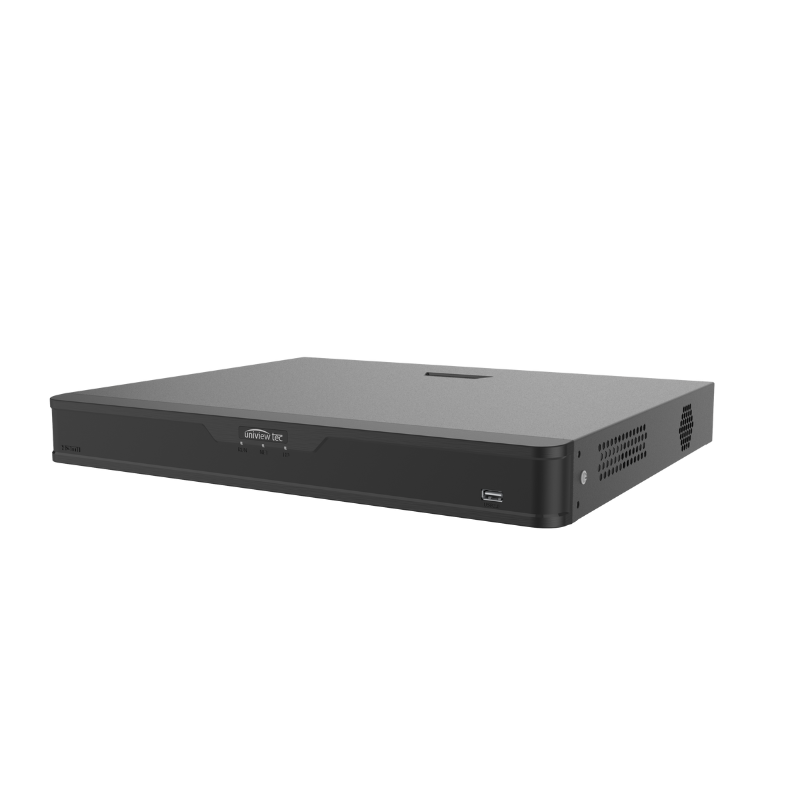

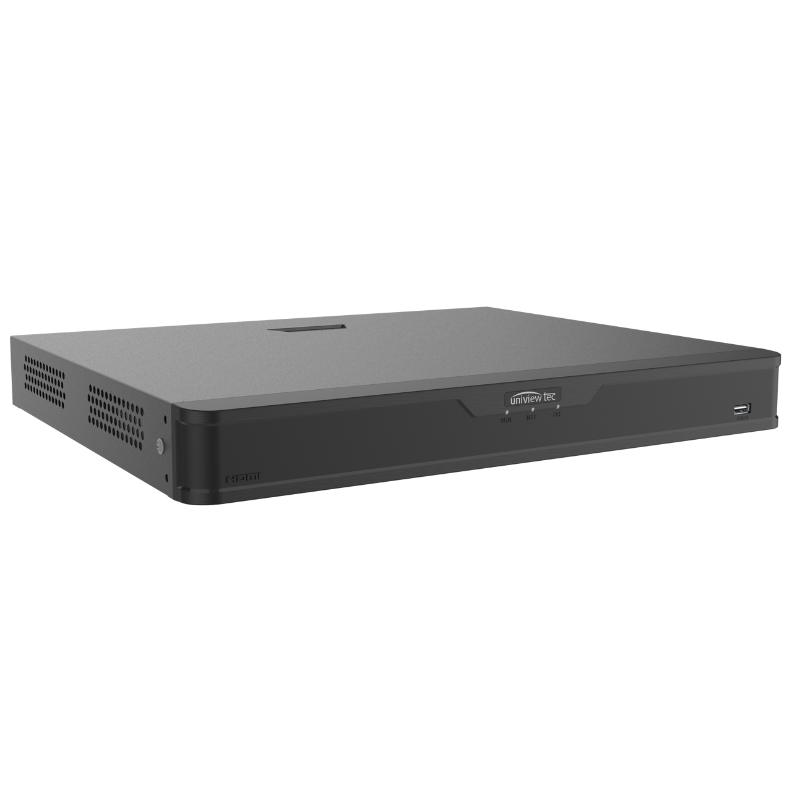

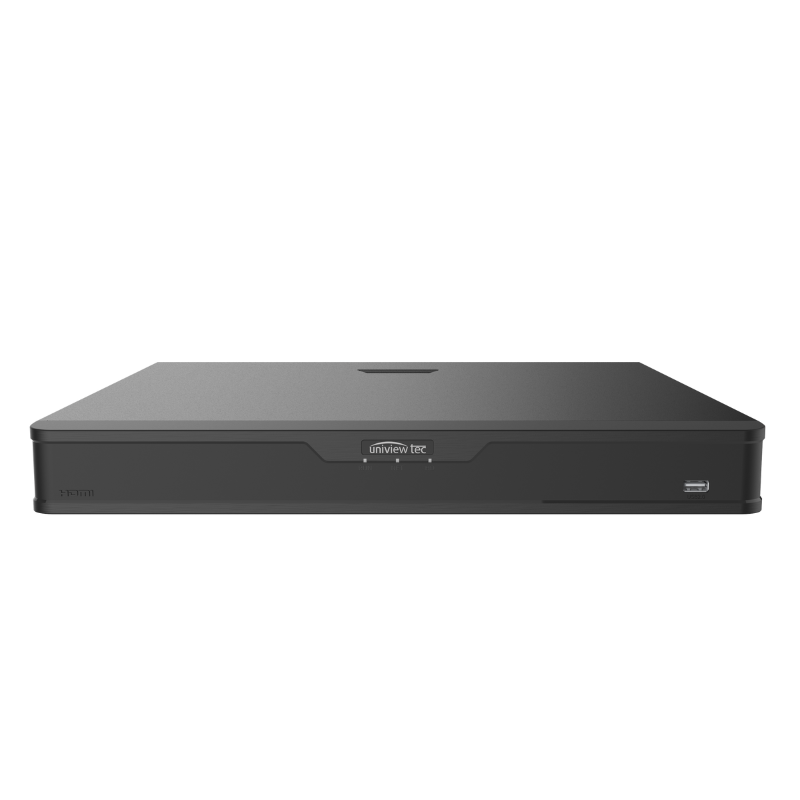

HNR322X
HNR322X

32ch Analog x 4ch IP, 8MP Resolution, Hybrid NVR

Storage Variants Available:

  • 16TB HDD
  • HNR322X-16
  • 32ch Analog x 4ch IP, 8MP Resolution, Hybrid NVR
  • 24TB HDD
  • HNR322X-24
  • 32ch Analog x 4ch IP, 8MP Resolution, Hybrid NVR
Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Hybrid network recorder supports recording of up to 8MP Resolution for HD Analog and IP Cameras with H.265 / H.264 Compression
  • Simultaneously supports 32 Analog (AHD, TVI, CVI and CVBS) and 4 IP Video Inputs with adaptive access (or up to 36 IP channels if no analog cameras are connected)
  • Supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from AHD, TVI and CVI camera without any rewiring
  • Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
  • HDMI display resolution up to 8MP
  • Supports Audio I/O and PTZ Camera control
  • Easy Plug and Play Functionality with Automatic Device Discovery and Display
  • Supports 2 SATA HDD up to 10TB each
  • ONVIF Profile S Compliant for IP Cameras
  • Long transmission distance over RG-6 coax cable up to 2000ft (600m)
  • Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices

SKU: HNR322X Categories: ,
Video & Audio Inputs
Analog Video Input 32-ch, BNC
IP Video Input 4-ch (only IP up to 36ch); each channel up to 8MP
Supported Analog Camera Type Support AHD input:
8MP @ 15fps
5MP @ 20fps
4MP @ 30fps
1080P @ 30fps
720P @ 30fps
Support TVI input:
8MP @ 15fps
5MP @ 20fps
4MP @ 30fps
1080P @ 30fps
720P @ 30fps
Support CVI input:
8MP @ 15fps
5MP @ 25fps
4MP @ 30fps
1080P @ 30fps
720P @ 30fps
Support CVBS input
Audio Input 1-ch, RCA
Audio Compression G.711U
Video & Audio Outputs
CVBS Output 1-ch, BNC
VGA Output 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024
x 768 / 60Hz
HDMI Output 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
Audio Output 1-ch, RCA
Synchronous Playback 16
Live view display HDMI / VGA: 1 / 4 / 6 / 8 / 9 / 16 / 25 / 36
Two-way Audio 1-ch, RCA (Using the audio input and output)
Coaxial Cable
Audio over cable 32-ch, One-way Audio (only for Uniview CVI protocol cameras)
Snapshot
FTP/Schedule/Event Snapshot 32-ch snapshot, up to 704 x 576 resolution
Network
Incoming Bandwidth 80Mbps (Up to 144Mbps after all analog channel conversion)
Outgoing Bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP
Supported Browsers IE(IE10/11) for Windows;
Firefox (version 52.0 and above) for Windows;
Chrome(version 45 and above) for Windows;
Edge(version 79 and above) for Windows
Encoding
Recording Resolution 8MP Lite / 5MP Lite /4MP Lite / 1080P / 720P / CIF
Recording
Frame Rate
Main stream Sub stream
8MP Lite @ 8fps D1 @ 8fps
5MP Lite @ 12fps D1 @ 12fps
4MP Lite @ 15fpss D1 @ 15fps
1080P @ 15fps D1 @ 15fps
720p @ 30fps D1 @ 30fps
Audio Sample Rate 8KHz,16 bit per channel
Audio Bit Rate 64Kbps per channel
Decoding
Capability (fps) Analog: 16 x 8MP Lite @ 8, 16 x 5MP Lite @ 12, 16 x 4MP Lite @ 15, 16 x 1080P @ 15, 16 x 720P @ 30
IP: 16 x 720P @ 30, 8 x 1080P @ 30, 4 x 4MP @ 30, 2 x 8MP @ 30
Hard Disk Drives
SATA 2 SATA Interface
Capacity Up to 10TB for each HDD
Smart Alarm
Analog Smart by XVR Ultra Motion Detection (UMD)
IP Smart by IPC Face Detection; Defocus Detection; Scene Change Detection; Object Removed; Object Left Behind; Auto Tracking
VCA Search Face Search; Behavior Search
Smart Functions by XVRC 16-ch (UMD)
General Alarm
General Alarm Motion detection
Alert Alarm IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk
Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Rear panel: 1 x USB3.0, Front panel: 1 x USB2.0
Serial Interface 1 x RS485
Alarm In 4
Alarm Out 1
General
Power Supply 12V DC; Power Consumption: ≤ 38W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions (W × D × H) 380 × 326 × 53mm (15 × 12.8 × 2.1")
Weight (without HDD) 2.6Kg ( 5.72lb )
General
Certifications FCC, CE (UL – Power Supply only)
NSW08PX

8-Port PoE Network Switch

NSW162PX

16-Port PoE Network Switch

NSW242PX

24-Port PoE Switch

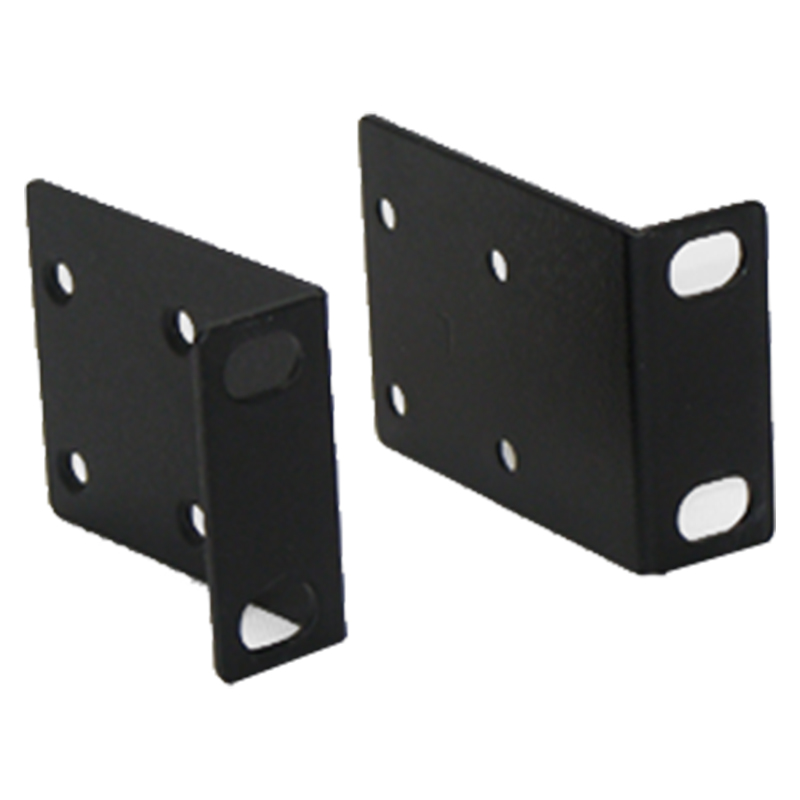

RCKERS2
