NR324XPC
NR324XPC

32ch, 16 PoE, 16MP Resolution, H.265 NVR

Storage Variants Available:

  • 8TB HDD
  • NR324XPC-8T
  • 32ch, 16 PoE, 16MP Resolution, H.265 NVR
  • 16TB HDD
  • NR324XPC-16T
  • 32ch, 16 PoE, 16MP Resolution, H.265 NVR
  • 24TB HDD
  • NR324XPC-24T
  • 32ch, 16 PoE, 16MP Resolution, H.265 NVR
  • 32TB HDD
  • NR324XPC-32T
  • 32ch, 16 PoE, 16MP Resolution, H.265 NVR
  • 40TB HDD
  • NR324XPC-40T
  • 32ch, 16 PoE, 16MP Resolution, H.265 NVR
Want to buy this product?
Find A Dealer

Key Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • 32ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Capability
  • Supports 4 SATA HDD up to 10TB and has Embedded PoE Switch for all Video Channels
  • Supports recording of up to 16MP Resolution Images
  • Display Images up to 4K(8MP) Resolution on HDMI Output
  • Concurrent Independent Displays on HDMI and VGA Monitor Outputs
  • ONVIF Profile Series S Compiant
  • Easy Plug and Play Functionality with Automatic Device Discovery and Display
  • Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades
  • Features Automatic Network Recovery (ANR) Technology to enhance storage reliability when network is disconnected
  • Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices

SKU: NR324XPC Categories: ,
Video & Audio Inputs
IP Video Input 32-ch
Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,RTSP,802.1x,IPV6
Supported Browsers IE(IE10/11) for Windows;
Firefox (version 52.0 and above) for Windows;
Chrome(version 45 and above) for Windows;
Edge(version 79 and above) for Windows
Video & Audio Outputs
HDMI / VGA Output HDMI: 3840 x 2160 / 30Hz, 1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 /60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
VGA:
1920 x 1080p / 60Hz, 1920 x 1080p / 50Hz, 1600 x 1200 / 60Hz, 1280 x 1024 / 60Hz, 1280 x 720 / 60Hz, 1024 x 768 / 60Hz
Recording Resolution 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Live view display 1 / 4 / 6 / 8 / 9 / 16 / 25 / 32
Corridor Mode Screen 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution
Decoding
Decoding format Ultra 265 / H.265 / H.264
Live view/Playback 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Capability Ultra 265 / H.265: 2 x 16MP @30, 2 x 12MP @ 30, 4 x 4K @ 30, 6 x 5MP @ 30, 8 x 4MP @ 30, 10 x 3MP @ 30,
16 x 1080P @ 30
H.264: 2 x 16MP (4800 x 2688) @ 30, 2 x 12MP @ 30, 2 x 4K @ 30, 4 x 5MP @ 30, 6 x 4MP @ 30, 8 x 3MP @
30, 14 x 1080P @ 30
Hard Disk Drives
SATA 4 SATA Interfaces
Capacity Up to 10TB for each HDD
Smart Features
VCA Detection by Camera Face Detection, Face Comparison, Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Face Detection, Face
Comparison, Vehicle Detection, UMD, Video Metadata by Camera		 Total 8-ch
System Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal
External Interface
Network Interface 1 x RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0; Rear panel: 1 x USB3.0
RS485 1
Alarm In 16-ch
Alarm Out 4-ch
PoE
Interface 16 x RJ-45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 150W in total
Supported Standard IEEE 802.3af/at
General
Power Supply 100~240V AC; Power Consumption: ≤ 20W (without HDD)
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Rack Ears Included
Dimensions (W × D × H) 400 × 368 × 74mm (15.7 × 14.5 × 2.9")
Weight ( without HDD ) ≤ 4Kg (8.82lb)
Certifications FCC, CE (UL – Power Supply only)
LB3L

NVR Lockbox

4KTESTMON1

Multi-Function Video Test Monitor

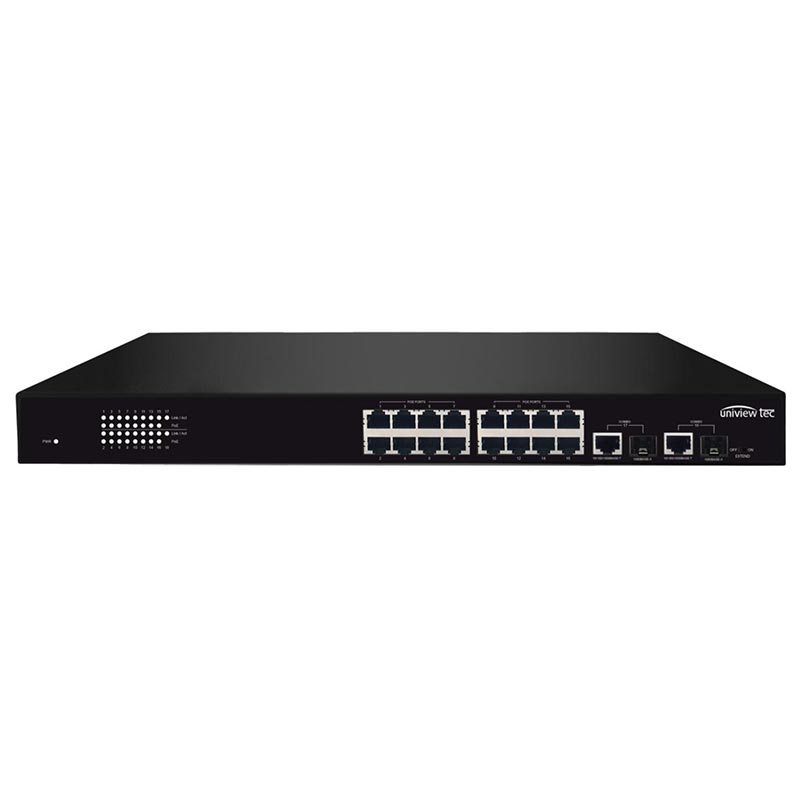

NSW162PX
