NR164X

16ch, 12MP Resolution, 4-bay HDD, H.265 NVR

Storage Variants Available:

Key Features

Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
16ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Performance
Supports recording of up to 12MP Resolution Images
Display 4K (3840 x 2160) Resolution Images on 2 x HDMI Outputs
Concurrent Independent Displays on HDMI and VGA Monitor Outputs
ONVIF Profile Series Compliant
Easy Plug and Play Functionality with Automatic Device Discovery and Display
Supports 4 SATA HDD’s up to 10TB each for 40TB total
Two way audio and Alarm I/O Support
Various Panoramic, Fisheye Dewarping modes are supported for live view and playback
Supports RAID 1 & 5
Features Automatic Network Recovery (ANR) Technology to enhance storage reliability when network is disconnected
Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades
Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Device

SKU: NR164X Categories: 16 Channel, IP NVRs

Video
IP Camera Inputs	16 channels
Video Formats	Ultra 265, H.265, H.264
Recording Video Resolution	12MP Maximum
Playback Video Capability (fps)	2 x 12MP @ 30; 4 x 4K @ 30; 8 x 4MP @ 30; 9 x 4MP @ 25; 16 x 1080p @ 30
Monitor Output	2 x HDMI (4K ~ 720p); 1 x VGA (1080p ~ 720P)
Synchronous Playback	16 channels
Corridor Mode Screen Display	3/4/5/7/9/10/12/16
Network
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Bandwidth	Incoming – 384Mbps Outgoing – 384Mbps
Remote Users	128
General
Network Interface	2 x RJ45, 10M/100M/1000M, Self-adaptive Ethernet
USB Interface	Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0
Alarm Interface	16ch – Inputs; 4ch - Output
Audio Interface	1ch RCA Input / Output
Array Type	RAID 1, 5
Hard Disk	4 SATA, up to 10TB each: total 40TB
Power	100-240VAC; 25W Consumption (w/o HDD)
Operating Temperature	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Rack Mountable	Yes; rack ears are included
Dimensions (WxDxH)	442 × 426 × 89mm (17.4 × 16.8 × 3.5")/td>
Weight (w/o HDD)	5.7kg（12.57lb）
Conformity Certifications	FCC, CE (UL – Power Supply only)

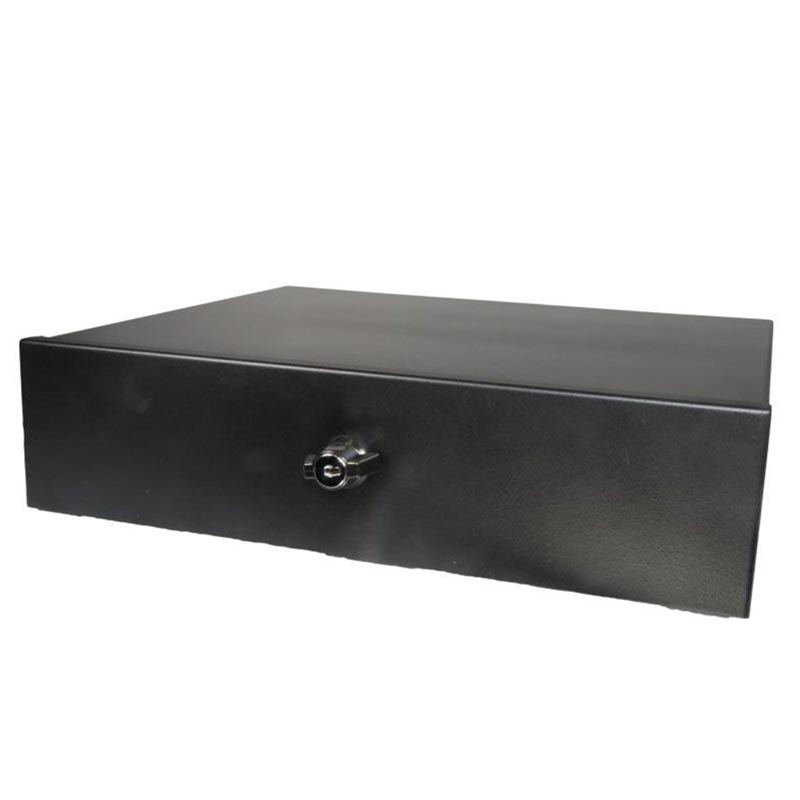

LB3L

NVR Lockbox

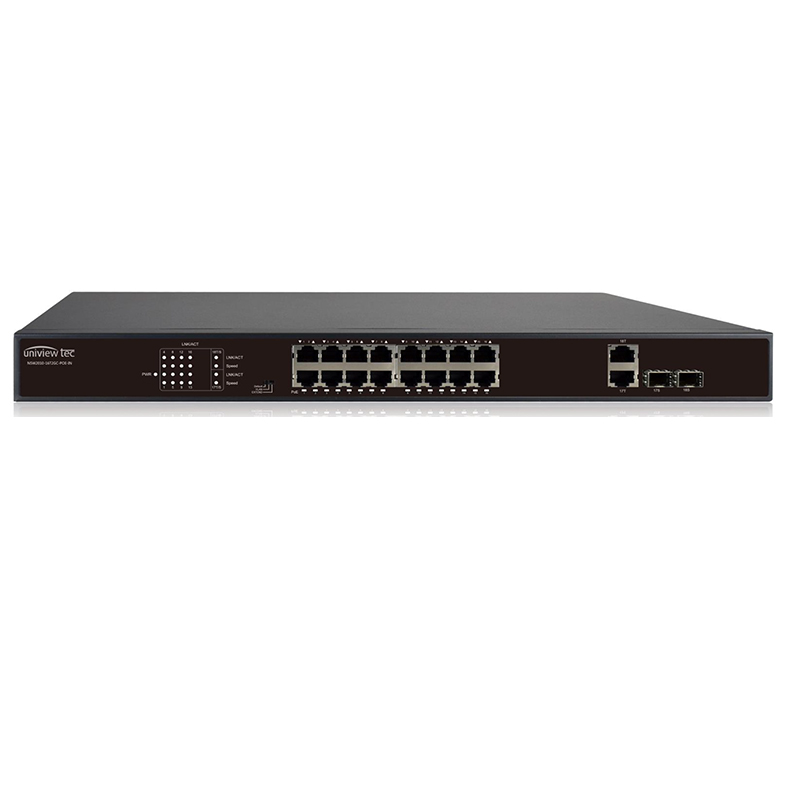

NSW162P
